Applications
Advancing intelligent manufacturing and hydraulic innovation through independent R&D.
Agricultural Machinery

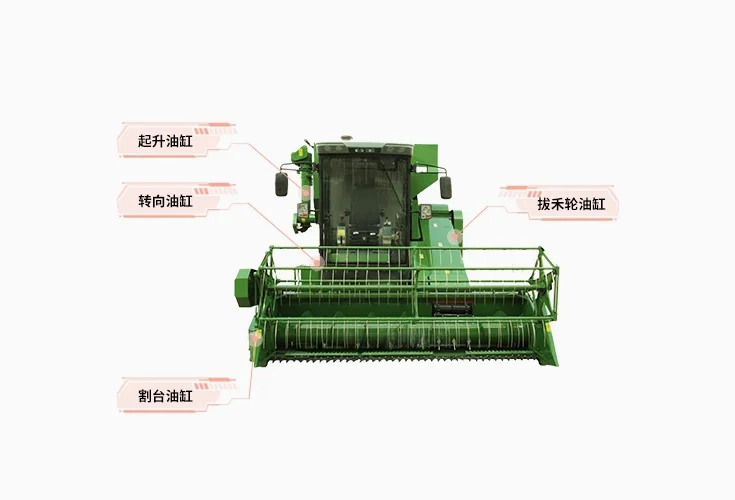

Used in tractors, combine harvesters, balers, sprayers, silage harvesters and orchard platforms. Cylinders drive 3-point hitch lifting, steering, header lifting, hopper tipping and chassis leveling.
Tractors
Combine Harvesters
Balers
Crop Protection Machinery
Forage Harvesters
Orchards
Tractors
Combine Harvesters
Balers
Crop Protection Machinery
Forage Harvesters
Orchards
Key Challenges
1
Seasonal Heavy Duty
14–18 working hours per day during harvest demand long seal life.
2
Outdoor Exposure
UV, rain and pesticide directly attack the piston rod.
3
Cost Sensitivity
Farmers require best price-performance without compromising reliability.
4
Diverse Motions
Single-acting tipping, double-acting leveling and multi-cylinder synchronization coexist.
5
Compatibility
Must match ISO Cat I–IV three-point hitch standards.
Our Solutions
Standardized agri-cylinder series with 7–15 day lead time.
Chrome-plated rod with UV-resistant packaging for safe long-term outdoor storage.
Two pressure tiers (16 / 20MPa) to suit cost-sensitive markets.
ISO 3-point hitch eyes and ball joints as standard.
Optional displacement sensors (proximity / magnetostrictive) ready for smart-agri control systems.
Recommended Products
Learn More
Steering Booster Cylinder
- It is compatible with 1-16 ton forklifts such as Zhongli and Noli, with cylinder diameter ranging from 40-115mm, rod diameter ranging from 28-60mm, rated working pressure from 9-16MPa, and stroke customized as needed. It is compatible with various forklift steering systems.
- The cylinder is made of #20 steel with precision honed seamless cylinder and is equipped with robotic automatic full welding process. It can withstand high-frequency steering operation without leakage, and the steering action is smooth and precise without jamming or play. It has excellent fatigue durability and service life.
- The piston rod is made of #45 steel plated with hard chrome, and offers a variety of surface anti-corrosion and wear-resistant treatment options such as Ni/Cr electroplating, laser cladding, and QPQ, making it suitable for complex working conditions such as humid, heavy-duty, and dusty environments.
- We can design and match steering valves, limit devices, oil pipes and other related accessories according to your needs; the normal temperature range is **-25℃~+110℃**, and we support customization for special working conditions of high and low temperatures.
Learn More
Lifting Cylinder
- It is compatible with various aerial work platforms such as scissor lifts, telescopic booms, and articulated booms. The cylinder diameter, boom diameter, and stroke can be customized according to the platform tonnage. The rated working pressure is 15-25MPa, and the peak pressure can reach 32MPa, meeting the stringent safety requirements for heavy-duty lifting, telescopic, and luffing operations at height.
- The cylinder is made of high-strength alloy steel precision honed seamless cylinder with high inner wall smoothness and low friction resistance. Combined with fully automatic robotic welding, post-weld stress relief treatment and non-destructive testing, it has high structural strength, impact resistance and deformation resistance. It can maintain a leak-free operation under long-term high-frequency lifting and luffing conditions, lift smoothly without shaking, and has excellent fatigue durability.
- The piston rod is made of 45#/40Cr alloy steel and comes standard with hard chrome plating. It also offers a variety of anti-corrosion and wear-resistant strengthening solutions, such as Ni/Cr electroplating, QPQ salt bath composite treatment, and laser cladding. It is suitable for complex outdoor environments such as sun and rain, humidity and dust, and low temperature and extreme cold. It has high hardness, resistance to scratches, and corrosion resistance, which greatly extends its service life.
- The sealing system can be equipped with imported Hallite/NOK/Trelleburg high-end seals, adopting a multi-layered dustproof + guiding + buffer sealing structure to effectively resist rainwater and dust intrusion, and resist pollution and aging. Explosion-proof valves, balance valves, overflow valves, one-way locks, hydraulic oil pipes and other safety components can be designed according to requirements to ensure smooth and controllable lifting, telescopic and luffing operations, eliminating the risks of working at height.
- Designed to withstand temperatures from -30℃ to +120℃, high and low temperature hydraulic cylinders can be customized for special working conditions such as high-altitude and cold regions and high-temperature construction sites, adapting to various extreme outdoor working environments.
Learn More
Support Leg Cylinder
- It is compatible with various aerial work platforms such as scissor lifts, telescopic booms, and articulated booms. The cylinder diameter, boom diameter, and stroke can be customized according to the platform tonnage. The rated working pressure is 15-25MPa, and the peak pressure can reach 32MPa, meeting the stringent safety requirements for heavy-duty lifting, telescopic, and luffing operations at height.
- The cylinder is made of high-strength alloy steel precision honed seamless cylinder with high inner wall smoothness and low friction resistance. Combined with fully automatic robotic welding, post-weld stress relief treatment and non-destructive testing, it has high structural strength, impact resistance and deformation resistance. It can maintain a leak-free operation under long-term high-frequency lifting and luffing conditions, lift smoothly without shaking, and has excellent fatigue durability.
- The piston rod is made of 45#/40Cr alloy steel and comes standard with hard chrome plating. It also offers a variety of anti-corrosion and wear-resistant strengthening solutions, such as Ni/Cr electroplating, QPQ salt bath composite treatment, and laser cladding. It is suitable for complex outdoor environments such as sun and rain, humidity and dust, and low temperature and extreme cold. It has high hardness, resistance to scratches, and corrosion resistance, which greatly extends its service life.
- The sealing system can be equipped with imported Hallite/NOK/Trelleburg high-end seals, adopting a multi-layered dustproof + guiding + buffer sealing structure to effectively resist rainwater and dust intrusion, and resist pollution and aging. Explosion-proof valves, balance valves, overflow valves, one-way locks, hydraulic oil pipes and other safety components can be designed according to requirements to ensure smooth and controllable lifting, telescopic and luffing operations, eliminating the risks of working at height.
- Designed to withstand temperatures from -30℃ to +120℃, high and low temperature hydraulic cylinders can be customized for special working conditions such as high-altitude and cold regions and high-temperature construction sites, adapting to various extreme outdoor working environments.
Learn More
Tilt Cylinder
- It is compatible with various aerial work platforms such as scissor lifts, telescopic booms, and articulated booms. The cylinder diameter, boom diameter, and stroke can be customized according to the platform tonnage. The rated working pressure is 15-25MPa, and the peak pressure can reach 32MPa, meeting the stringent safety requirements for heavy-duty lifting, telescopic, and luffing operations at height.
- The cylinder is made of high-strength alloy steel precision honed seamless cylinder with high inner wall smoothness and low friction resistance. Combined with fully automatic robotic welding, post-weld stress relief treatment and non-destructive testing, it has high structural strength, impact resistance and deformation resistance. It can maintain a leak-free operation under long-term high-frequency lifting and luffing conditions, lift smoothly without shaking, and has excellent fatigue durability.
- The piston rod is made of 45#/40Cr alloy steel and comes standard with hard chrome plating. It also offers a variety of anti-corrosion and wear-resistant strengthening solutions, such as Ni/Cr electroplating, QPQ salt bath composite treatment, and laser cladding. It is suitable for complex outdoor environments such as sun and rain, humidity and dust, and low temperature and extreme cold. It has high hardness, resistance to scratches, and corrosion resistance, which greatly extends its service life.
- The sealing system can be equipped with imported Hallite/NOK/Trelleburg high-end seals, adopting a multi-layered dustproof + guiding + buffer sealing structure to effectively resist rainwater and dust intrusion, and resist pollution and aging. Explosion-proof valves, balance valves, overflow valves, one-way locks, hydraulic oil pipes and other safety components can be designed according to requirements to ensure smooth and controllable lifting, telescopic and luffing operations, eliminating the risks of working at height.
- Designed to withstand temperatures from -30℃ to +120℃, high and low temperature hydraulic cylinders can be customized for special working conditions such as high-altitude and cold regions and high-temperature construction sites, adapting to various extreme outdoor working environments.
Learn More
Amplitude Cylinder
- It is compatible with various construction machinery and equipment such as excavators, loaders, bulldozers, and road rollers. The full range of cylinder diameter, rod diameter, and stroke specifications are available, and the working pressure can reach up to 28MPa. It also supports various non-standard sizes and working conditions customization.
- The cylinder is made of 20# steel precision honed seamless tubing, with high inner wall precision and strong wear resistance. It adopts fully automated robotic welding process, and the overall structure is stable and impact-resistant. It can adapt to high-frequency heavy load and bumpy reciprocating operation on construction sites. It is not easy to leak after long-term use and has a long and stable service life.
- The piston rod is made of 45# steel base material and comes standard with hard chrome plating. It also offers a variety of anti-corrosion and wear-resistant processes such as nickel-chromium electroplating, QPQ treatment, and laser cladding. It effectively resists outdoor dust, mud, water, and sun corrosion, is resistant to scratches and wear, and is suitable for various harsh construction environments.
- We can customize balance valves, explosion-proof valves, hydraulic pipelines and installation accessories according to customer needs; the normal operating temperature is -25℃ to +110℃, and we can also provide customization for special working conditions such as high temperature and low temperature to meet the engineering operation needs of different regions around the world.
Learn More
Horizontal Cylinder
- It is compatible with various construction machinery and equipment such as excavators, loaders, bulldozers, and road rollers. The full range of cylinder diameter, rod diameter, and stroke specifications are available, and the working pressure can reach up to 28MPa. It also supports various non-standard sizes and working conditions customization.
- The cylinder is made of 20# steel precision honed seamless tubing, with high inner wall precision and strong wear resistance. It adopts fully automated robotic welding process, and the overall structure is stable and impact-resistant. It can adapt to high-frequency heavy load and bumpy reciprocating operation on construction sites. It is not easy to leak after long-term use and has a long and stable service life.
- The piston rod is made of 45# steel base material and comes standard with hard chrome plating. It also offers a variety of anti-corrosion and wear-resistant processes such as nickel-chromium electroplating, QPQ treatment, and laser cladding. It effectively resists outdoor dust, mud, water, and sun corrosion, is resistant to scratches and wear, and is suitable for various harsh construction environments.
- We can customize balance valves, explosion-proof valves, hydraulic pipelines and installation accessories according to customer needs; the normal operating temperature is -25℃ to +110℃, and we can also provide customization for special working conditions such as high temperature and low temperature to meet the engineering operation needs of different regions around the world.
Learn More
