Mining Trucks
Mining trucks include wide-body mining dumpers, off-highway haul trucks, underground mine trucks and auxiliary mine vehicles operating in open-pit mines, aggregate quarries, coal mines and metal mines. Hydraulic cylinders are used for body hoisting, steering, suspension assist, tailgate locking, cab tilting and maintenance support. Compared with standard dump trucks, mining truck cylinders face heavier loads, more dust, stronger vibration and longer duty hours. Target SEO terms include mining truck hydraulic cylinder, mining dump truck hoist cylinder and off-highway truck cylinder.
Wide-Body Mining Dump Truck
Off-Highway Mining Trucks
Underground Mining Transport Vehicle
Mining Auxiliary Vehicles
Wide-body Mining Dump Truck
Off-highway Mining Trucks
Underground Mining Transport Vehicle
Mining Auxiliary Vehicles
Key Challenges
1
Ultra-Heavy Hoisting
Loaded mining trucks often reach 60–100T, creating high peak pressure at lift start.
2
Dust and Slurry Abrasion
Dust, mud and mineral particles quickly wear wipers and guide bands
3
Severe Vibration Fatigue
Rough haul roads stress bottom welds, eyes and mounting joints
4
Wide Temperature Range
Open-pit mines require sealing systems from -35°C to +110°C
5
High Downtime Cost
Mine stoppage affects output, so cylinders need long service life and fast field replacement
Our Solutions
Hoist cylinders use 35CrMo / 42CrMo high-strength materials, with UT inspection on critical welds.
Multi-stage telescopic cylinders use reinforced guide bands, double-lip wipers and scraper rings for dusty mines.
Ni-Cr composite plating or ceramic coating options improve rod impact and wear resistance.
Low-temperature PU + FKM seal stacks cover mine temperature swings and high oil temperatures.
Pin-to-pin length, stroke, eyes and port orientation can be customized from old parts or OEM drawings.
Recommended Products
Learn More

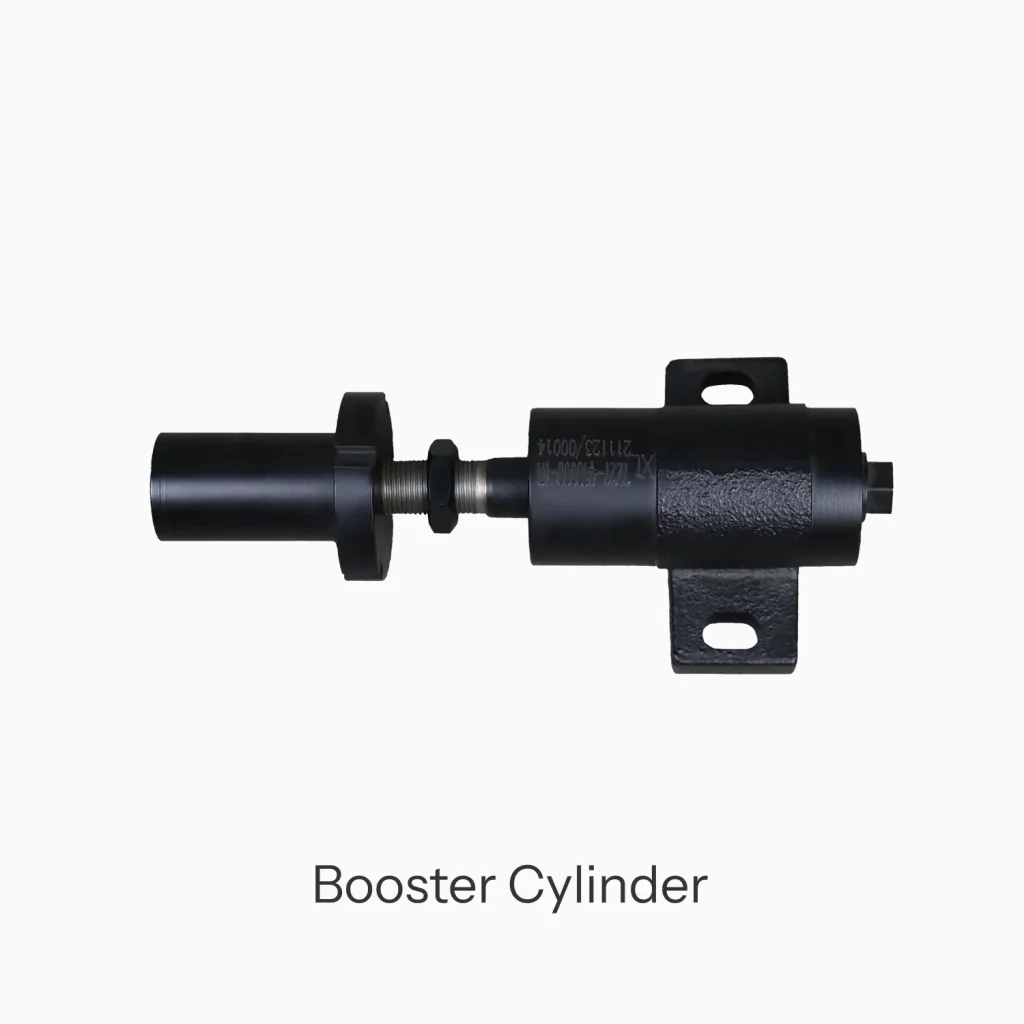

Steering Booster Cylinder
- It is compatible with 1-16 ton forklifts such as Zhongli and Noli, with cylinder diameter ranging from 40-115mm, rod diameter ranging from 28-60mm, rated working pressure from 9-16MPa, and stroke customized as needed. It is compatible with various forklift steering systems.
- The cylinder is made of #20 steel with precision honed seamless cylinder and is equipped with robotic automatic full welding process. It can withstand high-frequency steering operation without leakage, and the steering action is smooth and precise without jamming or play. It has excellent fatigue durability and service life.
- The piston rod is made of #45 steel plated with hard chrome, and offers a variety of surface anti-corrosion and wear-resistant treatment options such as Ni/Cr electroplating, laser cladding, and QPQ, making it suitable for complex working conditions such as humid, heavy-duty, and dusty environments.
- We can design and match steering valves, limit devices, oil pipes and other related accessories according to your needs; the normal temperature range is **-25℃~+110℃**, and we support customization for special working conditions of high and low temperatures.
Learn More
Lifting Cylinder
- It is compatible with various aerial work platforms such as scissor lifts, telescopic booms, and articulated booms. The cylinder diameter, boom diameter, and stroke can be customized according to the platform tonnage. The rated working pressure is 15-25MPa, and the peak pressure can reach 32MPa, meeting the stringent safety requirements for heavy-duty lifting, telescopic, and luffing operations at height.
- The cylinder is made of high-strength alloy steel precision honed seamless cylinder with high inner wall smoothness and low friction resistance. Combined with fully automatic robotic welding, post-weld stress relief treatment and non-destructive testing, it has high structural strength, impact resistance and deformation resistance. It can maintain a leak-free operation under long-term high-frequency lifting and luffing conditions, lift smoothly without shaking, and has excellent fatigue durability.
- The piston rod is made of 45#/40Cr alloy steel and comes standard with hard chrome plating. It also offers a variety of anti-corrosion and wear-resistant strengthening solutions, such as Ni/Cr electroplating, QPQ salt bath composite treatment, and laser cladding. It is suitable for complex outdoor environments such as sun and rain, humidity and dust, and low temperature and extreme cold. It has high hardness, resistance to scratches, and corrosion resistance, which greatly extends its service life.
- The sealing system can be equipped with imported Hallite/NOK/Trelleburg high-end seals, adopting a multi-layered dustproof + guiding + buffer sealing structure to effectively resist rainwater and dust intrusion, and resist pollution and aging. Explosion-proof valves, balance valves, overflow valves, one-way locks, hydraulic oil pipes and other safety components can be designed according to requirements to ensure smooth and controllable lifting, telescopic and luffing operations, eliminating the risks of working at height.
- Designed to withstand temperatures from -30℃ to +120℃, high and low temperature hydraulic cylinders can be customized for special working conditions such as high-altitude and cold regions and high-temperature construction sites, adapting to various extreme outdoor working environments.
Learn More
Support Leg Cylinder
- It is compatible with various aerial work platforms such as scissor lifts, telescopic booms, and articulated booms. The cylinder diameter, boom diameter, and stroke can be customized according to the platform tonnage. The rated working pressure is 15-25MPa, and the peak pressure can reach 32MPa, meeting the stringent safety requirements for heavy-duty lifting, telescopic, and luffing operations at height.
- The cylinder is made of high-strength alloy steel precision honed seamless cylinder with high inner wall smoothness and low friction resistance. Combined with fully automatic robotic welding, post-weld stress relief treatment and non-destructive testing, it has high structural strength, impact resistance and deformation resistance. It can maintain a leak-free operation under long-term high-frequency lifting and luffing conditions, lift smoothly without shaking, and has excellent fatigue durability.
- The piston rod is made of 45#/40Cr alloy steel and comes standard with hard chrome plating. It also offers a variety of anti-corrosion and wear-resistant strengthening solutions, such as Ni/Cr electroplating, QPQ salt bath composite treatment, and laser cladding. It is suitable for complex outdoor environments such as sun and rain, humidity and dust, and low temperature and extreme cold. It has high hardness, resistance to scratches, and corrosion resistance, which greatly extends its service life.
- The sealing system can be equipped with imported Hallite/NOK/Trelleburg high-end seals, adopting a multi-layered dustproof + guiding + buffer sealing structure to effectively resist rainwater and dust intrusion, and resist pollution and aging. Explosion-proof valves, balance valves, overflow valves, one-way locks, hydraulic oil pipes and other safety components can be designed according to requirements to ensure smooth and controllable lifting, telescopic and luffing operations, eliminating the risks of working at height.
- Designed to withstand temperatures from -30℃ to +120℃, high and low temperature hydraulic cylinders can be customized for special working conditions such as high-altitude and cold regions and high-temperature construction sites, adapting to various extreme outdoor working environments.
Learn More
Tilt Cylinder
- It is compatible with various aerial work platforms such as scissor lifts, telescopic booms, and articulated booms. The cylinder diameter, boom diameter, and stroke can be customized according to the platform tonnage. The rated working pressure is 15-25MPa, and the peak pressure can reach 32MPa, meeting the stringent safety requirements for heavy-duty lifting, telescopic, and luffing operations at height.
- The cylinder is made of high-strength alloy steel precision honed seamless cylinder with high inner wall smoothness and low friction resistance. Combined with fully automatic robotic welding, post-weld stress relief treatment and non-destructive testing, it has high structural strength, impact resistance and deformation resistance. It can maintain a leak-free operation under long-term high-frequency lifting and luffing conditions, lift smoothly without shaking, and has excellent fatigue durability.
- The piston rod is made of 45#/40Cr alloy steel and comes standard with hard chrome plating. It also offers a variety of anti-corrosion and wear-resistant strengthening solutions, such as Ni/Cr electroplating, QPQ salt bath composite treatment, and laser cladding. It is suitable for complex outdoor environments such as sun and rain, humidity and dust, and low temperature and extreme cold. It has high hardness, resistance to scratches, and corrosion resistance, which greatly extends its service life.
- The sealing system can be equipped with imported Hallite/NOK/Trelleburg high-end seals, adopting a multi-layered dustproof + guiding + buffer sealing structure to effectively resist rainwater and dust intrusion, and resist pollution and aging. Explosion-proof valves, balance valves, overflow valves, one-way locks, hydraulic oil pipes and other safety components can be designed according to requirements to ensure smooth and controllable lifting, telescopic and luffing operations, eliminating the risks of working at height.
- Designed to withstand temperatures from -30℃ to +120℃, high and low temperature hydraulic cylinders can be customized for special working conditions such as high-altitude and cold regions and high-temperature construction sites, adapting to various extreme outdoor working environments.
Learn More
Amplitude Cylinder
- It is compatible with various construction machinery and equipment such as excavators, loaders, bulldozers, and road rollers. The full range of cylinder diameter, rod diameter, and stroke specifications are available, and the working pressure can reach up to 28MPa. It also supports various non-standard sizes and working conditions customization.
- The cylinder is made of 20# steel precision honed seamless tubing, with high inner wall precision and strong wear resistance. It adopts fully automated robotic welding process, and the overall structure is stable and impact-resistant. It can adapt to high-frequency heavy load and bumpy reciprocating operation on construction sites. It is not easy to leak after long-term use and has a long and stable service life.
- The piston rod is made of 45# steel base material and comes standard with hard chrome plating. It also offers a variety of anti-corrosion and wear-resistant processes such as nickel-chromium electroplating, QPQ treatment, and laser cladding. It effectively resists outdoor dust, mud, water, and sun corrosion, is resistant to scratches and wear, and is suitable for various harsh construction environments.
- We can customize balance valves, explosion-proof valves, hydraulic pipelines and installation accessories according to customer needs; the normal operating temperature is -25℃ to +110℃, and we can also provide customization for special working conditions such as high temperature and low temperature to meet the engineering operation needs of different regions around the world.
Learn More
Horizontal Cylinder
- It is compatible with various construction machinery and equipment such as excavators, loaders, bulldozers, and road rollers. The full range of cylinder diameter, rod diameter, and stroke specifications are available, and the working pressure can reach up to 28MPa. It also supports various non-standard sizes and working conditions customization.
- The cylinder is made of 20# steel precision honed seamless tubing, with high inner wall precision and strong wear resistance. It adopts fully automated robotic welding process, and the overall structure is stable and impact-resistant. It can adapt to high-frequency heavy load and bumpy reciprocating operation on construction sites. It is not easy to leak after long-term use and has a long and stable service life.
- The piston rod is made of 45# steel base material and comes standard with hard chrome plating. It also offers a variety of anti-corrosion and wear-resistant processes such as nickel-chromium electroplating, QPQ treatment, and laser cladding. It effectively resists outdoor dust, mud, water, and sun corrosion, is resistant to scratches and wear, and is suitable for various harsh construction environments.
- We can customize balance valves, explosion-proof valves, hydraulic pipelines and installation accessories according to customer needs; the normal operating temperature is -25℃ to +110℃, and we can also provide customization for special working conditions such as high temperature and low temperature to meet the engineering operation needs of different regions around the world.
Learn More
